Views

To maintain information in the form of 2-D (two dimentional) data which is nothing but table.

Q Why we need view?

  • View is just like a table
  • View is not maintaing pytysical data but table is maintaing physical data.
  1. View is database object
  2. View contains logical copy of data
  • You can create view on the table
  • without table we can create a view but View is not valid that is called force view

What is view ?

  • View is DB Object

Why View

  • It contains logical copy of data from table.

What is nessesity to maintain a view?

  • Provide Security
  • Increase DB performance

Query Execution Process

Whenevery query are submitting the querry in client tool

  • client tool: SQL star plus window, any GUI tools
  • GUTI Tools: SQL Developer, Pl SQL Developer for ckient tool it is intracting with oracle engine

Oracle engine

  • SQL Sstatment Execution
  • PL/SQL Engine

pic digramher anothere digram here

PL/SQL program is group of statement to perform task, some lines pf programming statement.

  • SQL queries are submitted to SQL Statment executor
  • Programming statements are submited to PL/SQL engine
  • SQL statement executoe is a component which is compling sql queries

  • PL/SQL engine is a component which is compiling pl programing satatements

  • once compliation over it is communicat with oracle engine

  • oracle engine is communcated with oracle DB
  • From oracle db it will verfy table is there or not.

  • If table existed then it will get the data from actual data and past it to the client system

  • DD: Data Dictionary ( Contain metadata)

  • AD: Actual DAta (Stored in the form of Data blecks)

Meta Data

The structures of virtual object tables,squences synonyms, users,procedures packiages triggers alll these object structures mainainted under data dictionary(DD)

If we executedthe queries n thime the it will hit n times

  • eg
  • A group of 100 people executing the same query 100 number of times each
  • 100*100 = 10,000 times: it will hit database
  • The number of hits to the database is incresing automatically database performance will be degraded
  • within a short period of time if number of hit or hitting the database there may be many number of hit to db engine the automatically db performanve will be degrade

How to reduces no of hit?

...... continuie next time

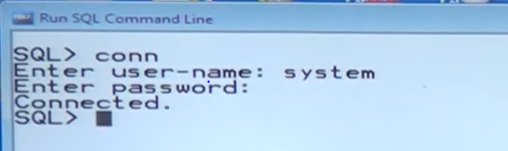

connect to db as a DBA

conn conn

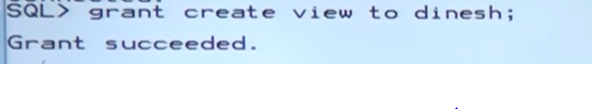

Take permision(Grant permintion)

grant create view to dinesh;

alt text

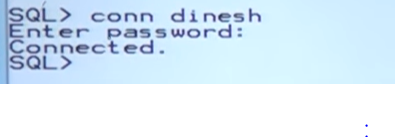

connect to user

conn dinesh alt text

Simple View

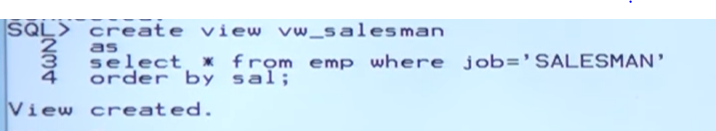

Create a view

create view vw_salesman
as
select * from emp where job='SALESMAN'
order by sal;

alt text

  • before getting permsion from dba we are unable to create view
  • why beacouse we are working database as client
  • client bydeafult having no permision to create view

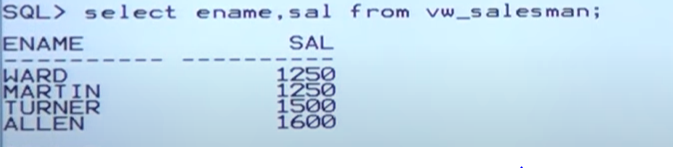

How to select data from view?

insted of selecting data from table once you crate a view you can directly select data from the view

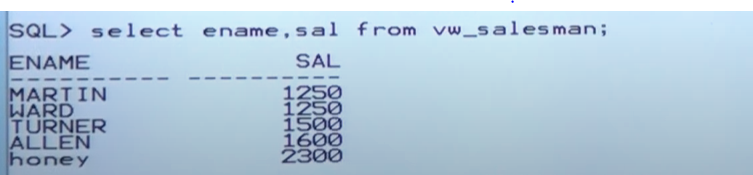

  • all salesman's names and salaries select ename,sal from vw_salesman; alt text
  • Any new sales man information inserted into table that is reflected into view

decc

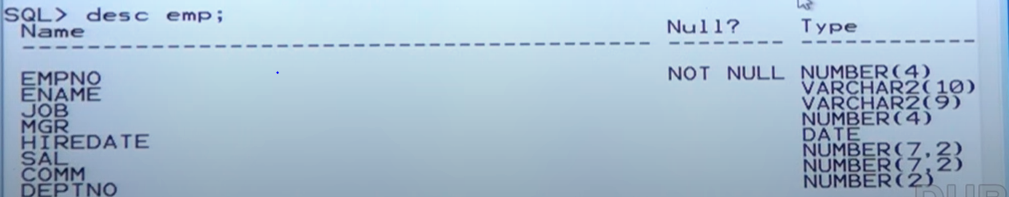

desc emp

alt text

Insert one record into the table

  • Salesman record we are inserting into table EMP
  • if he is salesman then only it will be revelected to view onther job should not be reflected

alt text

insert into emp values
(1234,'honey','SALESMAN',null,'23-oct-24',2300,100,30);

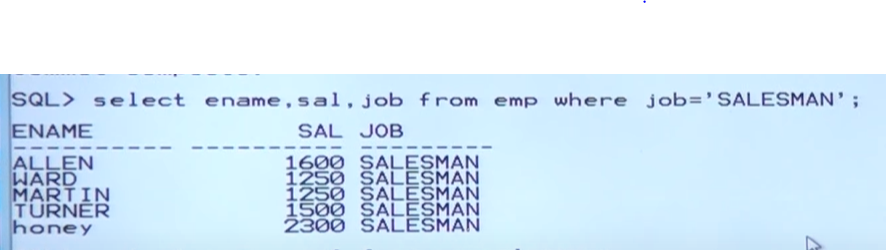

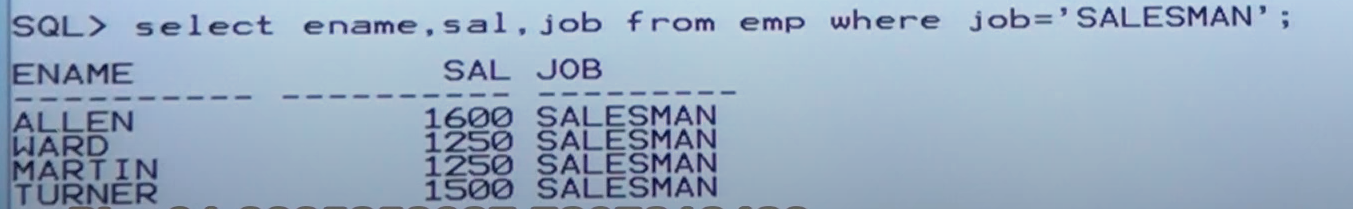

select ename,sal,job from emp where job= 'SALESMAN';

alt text

alt text

  • We didnot make the insert opration on the view
  • we make the operation on table
  • we are getting recored that is reflated into view also select ename,sal from vw_salesman;

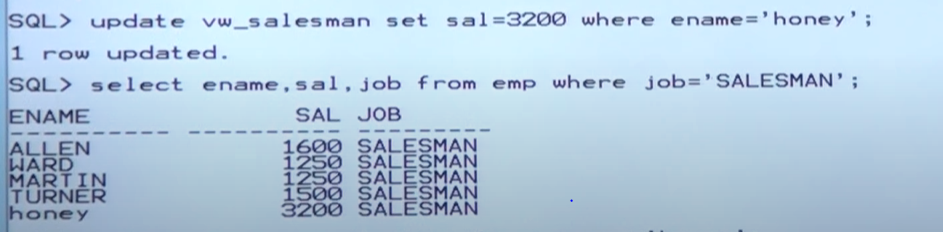

update operation on view

update vw_salesman set sal = 3200 where ename = 'honey';

  • one row update in the view is it reflected into table ,definatly ipdated
  • if we update table i.e reflated into view

  • if we update view i.e reflected into table.

alt text

delete record from view

if i delete a row it reflected in the table. from the tabel also it will be deleted

alt text

  • this is the simple view which is also called as updateable view
  • updateable view means on the view you are appling update,delete,insert command as a result table is affected
  • if you did somthing in the table the respected data will be reflected into view also automatically beacuse view maintains dynamic data

alt text

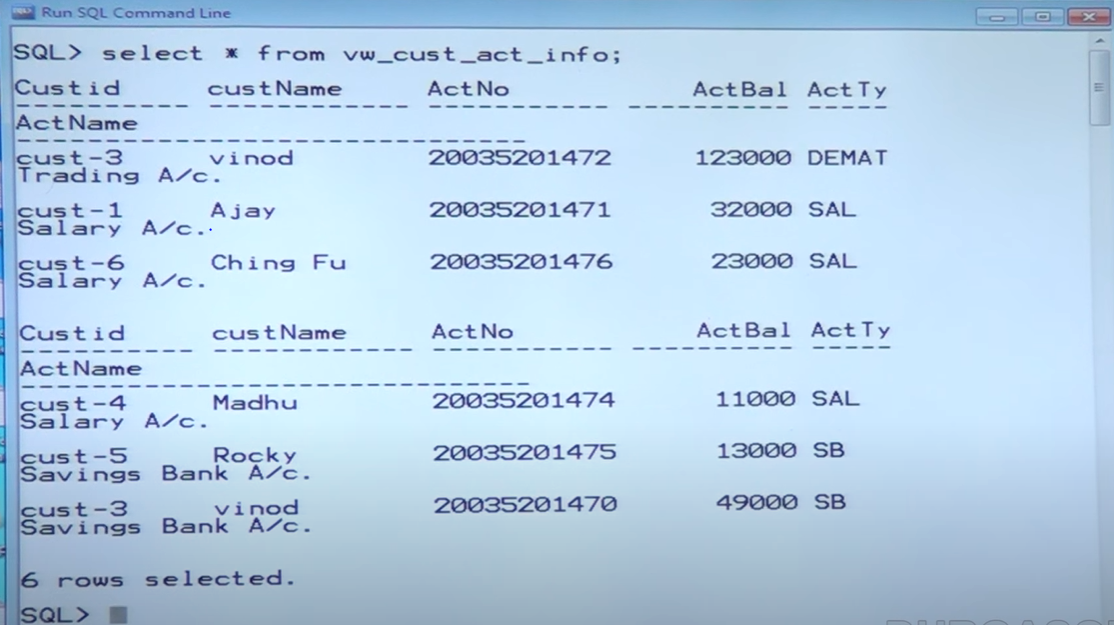

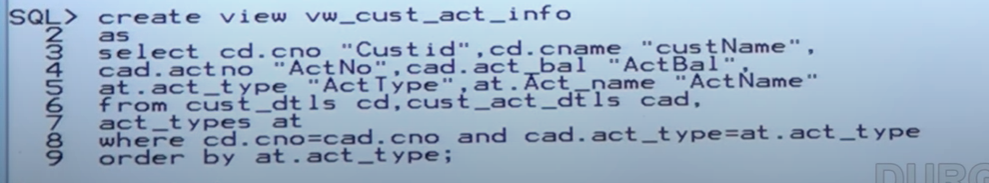

Composit view

Q what is composite view how can i create

alt text alt text
