DRF

Django Rest Framework (Restfull api)

  • Django application without REST API is like a human being without hands and legs.
  • It is very, very easy technology and small technology.
  • Mandatory technology.
  • Fewer people know this technology

List of apis types

  1. API
  2. Web API/Web Service
  3. REST
  4. REST API
  5. Django Rest Framework

1. API => Application Programming Interface

  • The main objective of API is two applications can communicate with each other. API allows external agent to communicate (integrate and exchange information) with our application

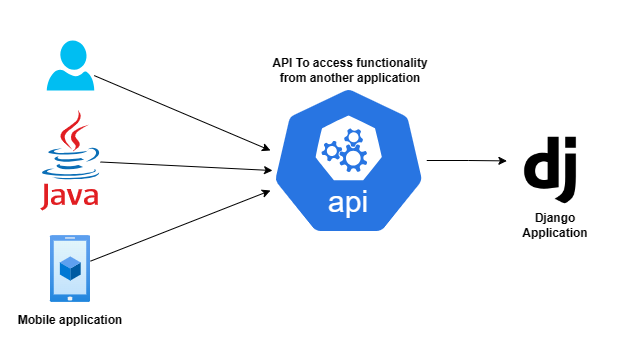

  • img_2.png
  • Mobile phone keyword act as interface
  • GUI(interface)
  • Interoperability: One application can communicate to another application

  • In a Simple way: 'Methods of communication between software components'

  • Note: Interface of communication between the user and application is nothing but API. The user can be Human user, an android app or desktop application etc.

2. Web API/Web Service

  • The interface of communication between the user and application over the web by using HTTP is nothing but Web API.

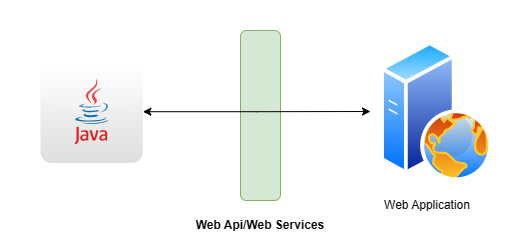

  • img.png
  • Eg1: By using API, a java application can communicate with a python application. Bookmyshow application can communicate with Payment gateway application to complete our booking.
  • Eg2: Authentication with Facebook
  • Every day we are using api in browser, in mobile, jio recharge, YouTube
  • API which is developed to access web application.

3. REST: Representational State Transfer

  • Representational State Transfer (REST) is an architectural style.
  • It defines several Rules/guidelines to develop Web APIs/Web Services
  • By using the REST, we can develop web APIs very easily in concise way.
  • Hence, the REST is the most popular Architecture to develop Web Services.
  • The Rest is language independent

4. RESTFul API

  • The API which is developed by using REST Architecture is nothing but a RESTFul API. i.e., interface between the user and application where API implements REST Architecture.
  • Note: REST is basically an architecture whereas RESTFul API is an API that implements REST

HTTP => Common language

  • Through this application communicate

Common Message Formate => XML/JSON

HTTP Verbs

HTTP Verbs represent the type of operation what we required. Based on requirement we have to use the corresponding HTTP verb.

The following are various HTTP Verbs

  1. GET => To get one/more existing resources
  2. POST => To create a new resource
  3. PUT => To update an existing resource like update all fields of employee
  4. PATCH => To perform partial updation of an existing resource like updating only salary of employee
  5. DELETE => To delete an existing resource.

Note: These are only important HTTP Verbs.

The following are not that much important verbs

  • OPTIONS
  • HEAD
  • CONNECT
  • TRACE
  • LOCK
  • MOVE
  • PROFIND etc

HTTP Verbs vs Database CRUD Operations

  • C (CREATE) : POST
  • R (RETRIEVE/READ) : GET
  • U (UPDATE) : PUT/PATCH
  • D (DELETE) : DELETE

Types of Web Services

There are 2 types of web services

  1. SOAP Based WebServices
  2. RESTful WebServices

1. SOAP Based Web Services

  • SOAP: Simple Object Access Protocol.
  • SOAP is an XML based protocol for accessing web services.
  • To describe SOAP based web services we have to use a special language: WSDL (Web Service Description Language).
  • SOAP based web services are more secured. We can consume by using RPC Method calls. These web services can provide support for multiple protocols like HTTP, SMTP, FTP etc

Limitations

  1. SOAP Based web services will always provide data only in XML format. Parsing of this XML data is very slow, which creates performance problems.
  2. Transfter of XML data over network requires more bandwidth.
  3. Implementing SOAP Based Web Services is very difficult.

Note: Because of heavy weight, less performance and more bandwidth requirements, SOAP based web services are not commonly used these days.

2. RESTful Web Services

  • REST stands for Representational State Transfer. It means that each unique URL is a represention of some object. We can get contents of this object by using HTTP GET, we can modify by using PUT/PATCH and we can delete by using DELETE.
  • We can create by using POST.  Most of the times RESTful web service will provide data in the form of JSON, parsing is not difficult. Hence this type of web services are faster when compared with SOAP based Web Services.
  • Transfer of JSON Data over the network requires less bandwidth.

Limitations

  1. It is less secured.
  2. It provide support only for the protocols which can provide URI, mostly HTTP.

Note: Because of ligth weight, high performance, less bandwidth requirements, easy development, human understandable message format, this type of web services are most commonly used type of web services.

Differences between SOAP and REST

SOAP REST
1) XML-based messaging protocol 1) An architectural style, not a protocol
2) Uses WSDL for communication between consumer and provider 2) Uses XML/JSON to send and receive data
3) Invokes services by using RPC method calls 3) Invokes services by simply using a URL path
4) Does not return human-readable results 4) Returns readable results like plain XML or JSON
5) Heavyweight 5) Lightweight
6) Requires more bandwidth 6) Requires less bandwidth
7) Can support multiple protocols like HTTP, SMTP, FTP, etc. 7) Can support only protocols that provide URIs, mostly HTTP
8) Performance is low 8) Performance is high
9) More secure 9) Less secure

Note: Most of the Google web services are SOAP Based. Yahoo  RESTful eBay and Amazon using both SOAP and Restful

Web Service Provider vs WebService Consumer

  • The application which is providing web services is called Web Service Provider.
  • The application which is consuming web data through web services, is called Web service consumer.

Eg: Bookmyshow app <--> Payment Gateway app To complete our booking, bookmyshow application will communicates with payment gateway application. Hence payment gateway applications acts as webservice provider and bookmyshow application acts as web service consumer.

Great question! Let's explore the reasons for choosing requests vs httpx in FastAPI, and why I initially used requests in the example, but also mentioned httpx as a more suitable option for asynchronous calls.

Why Use requests (Synchronous)?

requests is a widely-used, easy-to-understand library for making HTTP requests. It's synchronous, meaning the application will wait for the HTTP request to complete before moving on to the next task. It’s a good choice in the following scenarios:

  1. Simplicity and Readability: requests is known for its simplicity and readability, making it easy to use for beginners or those working on smaller projects. The code looks clean and the syntax is intuitive.

  2. Blocking Operations: If your FastAPI application doesn't need to handle multiple concurrent tasks (e.g., if it’s low-traffic or doesn’t involve large-scale data fetching), using requests might be perfectly fine. It's simple to implement when you're building an API or application that doesn't need the added complexity of asynchronous behavior.

  3. No Need for Concurrency: If you don’t have multiple HTTP requests happening at once, using requests might make your life easier since you don't need to deal with async/await.

Example Use Case for requests

If your FastAPI API is fetching data from another API on a relatively small scale, and you don't mind the application being "blocked" while it waits for the response, requests will do the job. It simplifies the development process and is good enough for small, straightforward applications.

Why Use httpx (Asynchronous)?

httpx is an asynchronous HTTP client designed for high-performance applications. FastAPI is built with async and await functionality in mind, and using httpx aligns well with FastAPI's capabilities. Here are some key reasons why httpx is the preferred choice in an asynchronous environment:

  1. Asynchronous Requests:
  2. httpx is designed for asynchronous calls, meaning it does not block your application while waiting for a response. This allows your FastAPI application to handle multiple HTTP requests concurrently, leading to better performance in high-traffic scenarios.

  3. With httpx, you can handle many requests at once without waiting for each one to finish before starting the next. This is ideal for APIs that need to fetch data from multiple sources simultaneously or those with high concurrent users.

  4. Non-Blocking:

  5. FastAPI works well with asynchronous frameworks. If you're making HTTP requests in an endpoint and need to perform additional tasks (like querying databases, fetching multiple APIs, or processing data), using httpx ensures that your server doesn't block and waits for each task to finish sequentially.

  6. httpx leverages the async I/O model in Python, which can handle thousands of requests concurrently without waiting for each one to finish.

  7. Better Scalability:

  8. For APIs with high concurrency (like real-time data fetching from external services or high-frequency updates), using httpx can significantly improve performance, as FastAPI is designed for async operation. Without async I/O, a synchronous request with requests would block the server during the request/response cycle, making it less efficient under load.

  9. HTTP/2 Support:

  10. httpx also supports HTTP/2, which can improve performance for some applications by enabling multiplexing (multiple requests on a single connection).

  11. More Control:

  12. httpx provides advanced features like connection pooling, handling streaming responses, and customizable timeouts, which can give you more control over how your requests are managed.

Example Use Case for httpx

If your FastAPI application is interacting with multiple APIs, handling high traffic, or needs to fetch data concurrently from many sources, httpx is the better choice as it won't block the server while waiting for responses and will handle multiple requests efficiently.

When to Use requests vs httpx in FastAPI

Feature requests (Synchronous) httpx (Asynchronous)
Concurrency Handling Blocks the event loop, handles one request at a time Non-blocking, handles multiple requests concurrently
Performance with High Traffic Slower, as each request blocks the thread Faster for high concurrency, as requests are non-blocking
Ease of Use Simpler, easy to understand and use Requires knowledge of async programming, more complex
Ideal Use Case Small apps with low traffic, or simple applications High-concurrency apps, APIs fetching from multiple sources
Integration with FastAPI Works fine for small projects Best for projects designed for high concurrency and scalability

Example

Using requests (Simple, Blocking)

import requests
from fastapi import FastAPI

app = FastAPI()

@app.get("/fetch-todo/{todo_id}")
async def fetch_todo(todo_id: int):
    url = f"https://jsonplaceholder.typicode.com/todos/{todo_id}"
    response = requests.get(url)
    return response.json()

In this example, FastAPI will wait for requests.get(url) to complete before processing the next request. If multiple users hit the endpoint simultaneously, each request will wait for the previous one to finish.

Using httpx (Async, Non-Blocking)

import httpx
from fastapi import FastAPI

app = FastAPI()

@app.get("/fetch-todo/{todo_id}")
async def fetch_todo(todo_id: int):
    url = f"https://jsonplaceholder.typicode.com/todos/{todo_id}"
    async with httpx.AsyncClient() as client:
        response = await client.get(url)
    return response.json()

With httpx, FastAPI can handle multiple requests concurrently without waiting for the response of each individual one. This is especially useful for high-traffic APIs or applications that need to perform multiple I/O-bound operations.

Conclusion

  • requests is simple and easy to use, and works fine for small applications or scenarios where concurrency isn’t a concern.
  • httpx is a better choice for asynchronous applications that need to handle multiple requests concurrently and scale efficiently. FastAPI is designed to work with asynchronous frameworks, so httpx integrates better with FastAPI for optimal performance.

If your FastAPI app is expected to handle a lot of traffic or needs to fetch data from multiple sources concurrently, httpx is the better choice. However, for smaller applications, requests might be sufficient, especially when simplicity and quick development are more important.

Let me know if you need further clarification!
